Near the top we break out nearly every pin you could want to connect to the Pi (#26 didn't quite make the cut). There's also long power strips for +3V, +5V and Ground connections to the Pi.

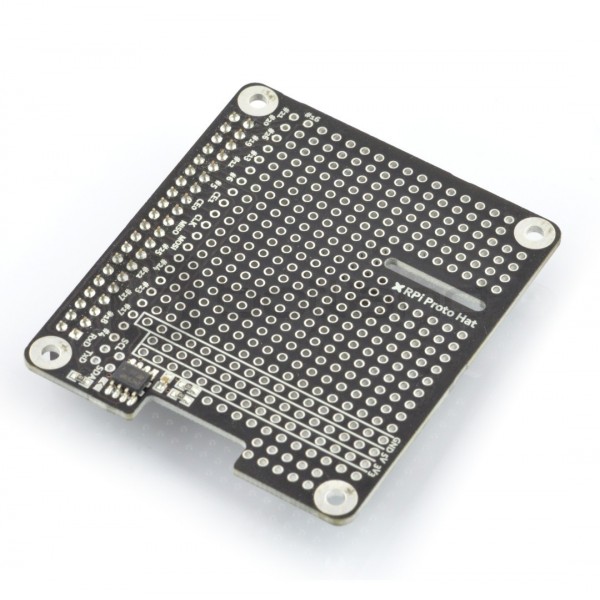

The holes are connected underneath with traces to mimic the solderless breadboards with which you're familiar. It has a grid of 0.1" prototyping soldering holes for attaching chips, resistors, LED, potentiometers and more. To kick off the Adafruit HAT party, we have this Perma-Proto inspired plug in daughter board. To connect it to a Pi, you'll also need a 26-pin GPIO cable if you don't already have one.Adafruit Perma-Proto HAT for Pi Mini Kit - No EEPROMĭesign your own Pi HAT, attach custom circuitry and otherwise dress your Pi A+, B+, or Pi 2 with this jaunty prototyping HAT kit. The finish is a gold plate - you won't get oxidation like with bare copper perf! There are also tons of mounting holes so you can attach the PCB to your project box.Ĭomes with one PCB and one box header, you'll need to do a little light soldering to attach the box header to the PCB but its fast and easy to do.
All holes are thru-plated for strength - these wont peel off with rework. We used 1.2mm diameter drill holes so even parts with big leads will fit. The bottom has a 4-hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so you can easily cut traces when necessary. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy.
This proto-board is the PCB you always wish you had, but never realized it! We took the basic layout of a quarter-sized breadboard (the PCB has 17 rows) and turned that into a beautiful PCB. That's when we realized what people would really like is a proto board that makes it easy! Then we thought about how people actually prototype - usually starting with a solderless breadboard and then transferring the parts to a more permanent PCB. Simply solder the 2x13 pin header in and you get all the labeled breakouts with tons of prototyping space, power rails, mounting holes and that gorgeous silk.Ĭustomers have asked us to carry basic perf-board, but we never liked the look of most basic perf: its always crummy quality, with pads that flake off and no labeling. We put a PermaProto quarter-sized proto board in a blender with a Pi Cobbler and out emerged this very tasty confection - the PermaProto for Pi! It has the Cobbler baked right in.
